SA3086 Datasheet - DRAGON DRIVE

80-CH SEGMENT /COMMON DRIVER

SA3086 Features

* Power supply voltage: + 5V + 10 %, + 3V + 10% Supply voltage for display: 6 to 28 V (VDD- VEE) 4-bit parallel / 1-bit serial data processing (in segment mode) Single mode operation / dual mode operation (in common mode) Power down function (in segment mode) Applicable LCD duty 1/64

* 1/

SA3086 General Description

Name Function COM/SEG Clock control Generates latch clock (LCK), shift clock (SCK) and control clock COM/SEG timing according to the input of CL1, CL2 and control inputs (CS, AMS). In case of common driver application, this block generates shift clock (LCK) for the common data bidirectional sh.

SA3086 Datasheet (364.99 KB)

SA3086 Datasheet Preview — Preview of SA3086 PDF

Datasheet Details

Part number:

SA3086

Manufacturer:

DRAGON DRIVE

File Size:

364.99 KB

Description:

80-ch segment /common driver.

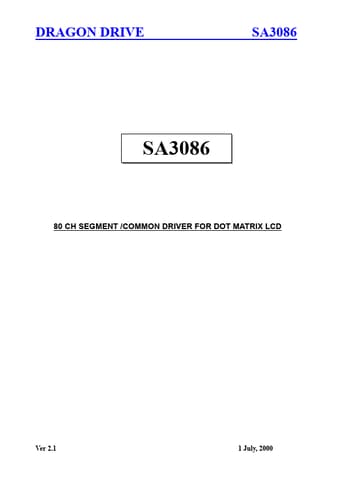

DRAGON DRIVE SA3086 SA3086 80 CH SEGMENT /COMMON DRIVER FOR DOT MATRIX LCD Ver 2.1 1 July, 2000 DRAGON DRIVE SA3086 INTRODUCTION The SA3086 is.
