1N4554B Datasheet - DSI

1N4554B DIODE

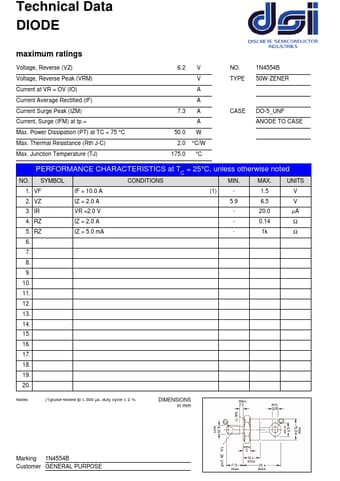

Technical Data DIODE maximum ratings Voltage, Reverse (VZ) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IZM) Current, Surge (IFM) at tp = Max. Power Dissipation (PT) at TC = 75 °C Max. Thermal Resistance (Rth J-C) Max. Junction Temperature (TJ) 6.2 V empty V empty A empty A 7.3 A empty A 50.0 W 2.0 °C/W 175.0 °C NO. TYPE empty empty CASE empty empty 1N4554B 50W-ZENER empty empty DO-5_UNF ANODE TO CASE empty PERFORMANCE C.

1N4554B Datasheet (33.53 KB)

1N4554B Datasheet Preview — Preview of 1N4554B PDF

Datasheet Details

Part number:

1N4554B

Manufacturer:

DSI

File Size:

33.53 KB

Description:

Diode.
