DSA1-16D DIODE

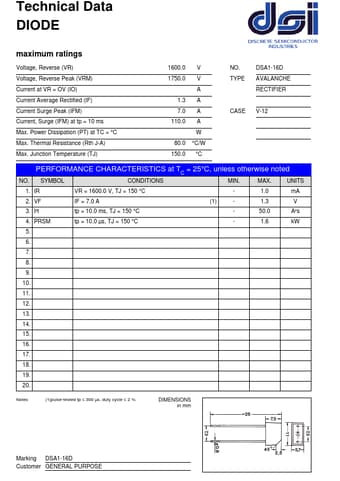

Technical Data DIODE maximum ratings Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IFM) Current, Surge (IFM) at tp = 10 ms Max. Power Dissipation (PT) at TC = °C Max. Thermal Resistance (Rth J-A) Max. Junction Temperature (TJ) 1600.0 V 1750.0 V empty A 1.3 A 7.0 A 110.0 A empty W 80.0 °C/W 150.0 °C NO. TYPE empty empty CASE empty empty DSA1-16D AVALANCHE RECTIFIER empty V-12 empty empty PERFORMANCE CHA.

DSA1-16D Datasheet (35.16 KB)

DSA1-16D Datasheet Preview — Preview of DSA1-16D PDF

Datasheet Details

Part number:

DSA1-16D

Manufacturer:

DSI

File Size:

35.16 KB

Description:

Diode.
