DSL800480STMQWTA0 LCD Display

DSL800480STMQWTA0 Description

DSL800480STMQWTA0 LCD-Display 7’’ TFT 800480 Active Matrix with White LED Backlight & Touch Panel 1..

DSL800480STMQWTA0 Features

* 7 inch module is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 7.0 (16:9) inch diagonally measured active di

📥 Download Datasheet

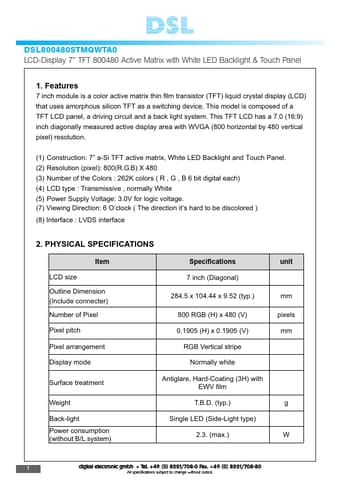

Preview of DSL800480STMQWTA0 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSL800480STMQWTA0
Manufacturer
DSL
File Size
1.04 MB
Datasheet
DSL800480STMQWTA0-DSL.pdf
Description
LCD Display
