CT8022 - TELEPHONE SPEECH CIRCUIT

Datasheet Summary

Description

The CT8022 is a speech co-processor which performs full-duplex speech compression and de-compression functions.

It provides speech compression for H.323 and H.324 Multimedia Visual Telephony/Video Conferencing products and DSVD modems.

Features

  • TrueSpeech at 8.5, TrueSpeech G.723.1, 6.3, 5.3, 4.8 and 4.1 KBPS at 8KHz sampling rate (including G.723.1 Annex A VAD/CNG) Download of additional speech compression software modules into external SRAM for FlexiSpeech, G.722 & G.729-A/B Real-time Full duplex or Half duplex speech compression and decompression Acoustic Echo Cancellation concurrent with fullduplex speech compression Full Duplex standalone Speakerphone Host-to-Host (CODEC-less) and Host-CODEC modes of operation Paralle.

📥 Download Datasheet

Datasheet preview – CT8022

Datasheet Details

Part number CT8022
Manufacturer DSP Group
File Size 1.41 MB
Description TELEPHONE SPEECH CIRCUIT
Datasheet download datasheet CT8022 Datasheet
Additional preview pages of the CT8022 datasheet.

📁 Similar Datasheet

  • CT8022K - Double touch dual output touch-IC (CZH)
  • CT8122 - Integrated Bipolar TMR Digital Latches (Allegro)
  • CT8124-T52 - N-Channel MOSFET (CT Micro)
  • CT8131 - Integrated Omnipolar TMR Digital Switches (Allegro)
  • CT8132 - Integrated Omnipolar TMR Digital Switches (Allegro)
  • CT814 - Phototransistor Optocoupler (CT Micro)
  • CT814A - Phototransistor Optocoupler (CT Micro)
  • CT814B - Phototransistor Optocoupler (CT Micro)
  • CT815 - Photodarlington Optocoupler (CT Micro)
  • CT8150 - Integrated Omnipolar TMR Analog Sensor (Allegro)
Other Datasheets by DSP Group
  • CT8020 - TELEPHONE SPEECH CIRCUIT

Full PDF Text Transcription

Click to expand full text

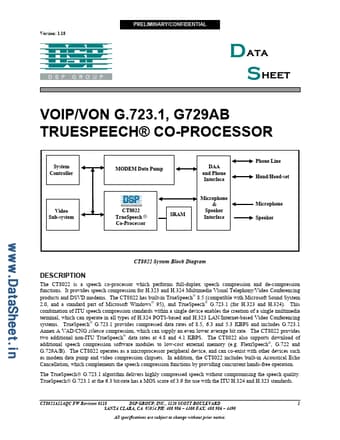

PRELIMINARY/CONFIDENTIAL Version: 1.18 Data Sheet VOIP/VON G.723.1, G729AB TRUESPEECH® CO-PROCESSOR System Controller MODEM Data Pump DAA and Phone Interface Microphone & Speaker Interface Phone Line Hand/Head-set Microphone Speaker Video Sub-system CT8022 TrueSpeech  Co-Processor SRAM CT8022 System Block Diagram DESCRIPTION The CT8022 is a speech co-processor which performs full-duplex speech compression and de-compression functions. It provides speech compression for H.323 and H.324 Multimedia Visual Telephony/Video Conferencing products and DSVD modems. The CT8022 has built-in TrueSpeech 8.5 (compatible with Microsoft Sound System 2.0, and a standard part of Microsoft Windows 95), and TrueSpeech G.723.1 (for H.323 and H.324).
