DX6210 - primary side offline LED lighting regulator

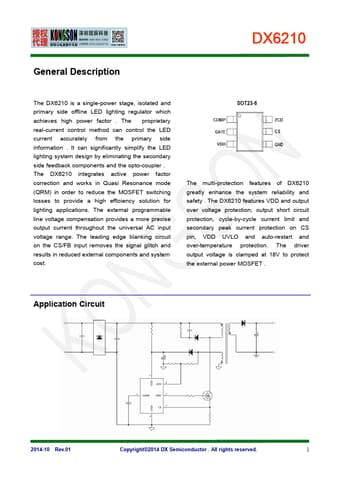

DX6210 Datasheet Preview — Preview of DX6210 PDF

Datasheet Details

Part number	DX6210
Manufacturer	DX Semiconductor
File Size	797.62 KB
Description	primary side offline LED lighting regulator
Datasheet	DX6210-DXSemiconductor.pdf

DX6210 Product details

Description

The DX6210 is a single-power stage, isolated and SOT23-6 primary side offline LED lighting regulator which achieves high power factor .The proprietary KONGSON real-current control method can control the LED current accurately from the primary side information .It can significantly simplify the LED lighting system design by eliminating the secondary side feedback components and the opto-coupler .The DX6210 integrates active power factor correction and works in Quasi Resonance mode (QRM) i

Features

of DX6210 greatly enhance the system reliability and safety . The DX6210 features VDD and output over voltage protection; output short circuit protection, cycle-by-cycle current limit and secondary peak current protection on CS pin, VDD UVLO and auto-restart and over-temperature protection. The driver output voltage is clamped at 18V to protect the external power MOSFET.
