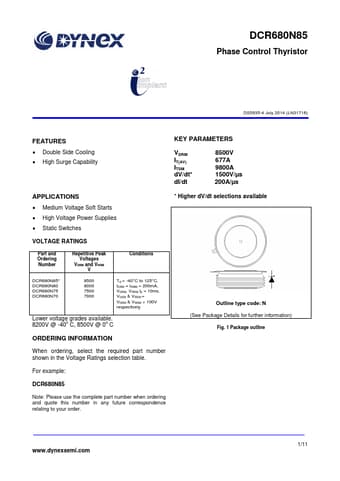

DCR680N85 Datasheet, Thyristor, DYNEX

DCR680N85 Features

• Thyristor
• Double Side Cooling
• High Surge Capability KEY PARAMETERS VDRM IT(AV) ITSM dV/dt
• dI/dt 8500V 677A 9800A 1500V/µs 200A/µs APPLICATIONS
• Medium Vo

PDF File Details

Part number:

DCR680N85

Manufacturer:

DYNEX

File Size:

568.26kb

Download:

📄 Datasheet

Description:

Phase control thyristor.

DCR680N85 Application

• Applications
• Medium Voltage Soft Starts
• High Voltage Power Supplies
• Static Switches
• Higher dV/dt selections

TAGS

DCR680N85

DYNEX
