SBR860 - (SBR820 - SBR8100) CURRENT 8.0 AMPERES

This page provides the datasheet information for the SBR860, a member of the SBR8100 (SBR820 - SBR8100) CURRENT 8.0 AMPERES family.

Datasheet Summary

Features

  • Plastic Package has Underwriters Laboratory Flammability Classification 94V-0.
  • Metal silicon junction, majority carrier conduction.
  • Guard ring for overvoltage protection.
  • Low power loss, high efficiency www. DataSheet4U. com.
  • High current capability, Low forward voltage drop.
  • Single rectifier construction.
  • High surge capability.
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

Datasheet preview – SBR860

Datasheet Details

Part number SBR860
Manufacturer Daesan Electronics
File Size 279.61 KB
Description (SBR820 - SBR8100) CURRENT 8.0 AMPERES
Datasheet download datasheet SBR860 Datasheet
Additional preview pages of the SBR860 datasheet.

📁 Similar Datasheet

  • SBR8 - (SBR05 - SBR30) Standard Recovery 1-Phase Silicon Bridge Rectifier Assembly (Semtech Corporation)
  • SBR80520LT1G - Surface Mount Schottky Power Rectifier (ON Semiconductor)
  • SBR80520LT3G - Surface Mount Schottky Power Rectifier (ON Semiconductor)
  • SBR8210 - (SBR8210 / SBR8215) Schottky ORing Diode (Microsemi Corporation)
  • SBR8215 - (SBR8210 / SBR8215) Schottky ORing Diode (Microsemi Corporation)
  • SBR8A45SP5 - SUPER BARRIER RECTIFIER (Diodes)
  • SBR8A60P5 - SUPER BARRIER RECTIFIER (Diodes)
  • SBR8B60P5 - SUPER BARRIER RECTIFIER (Diodes)
  • SBR8E20P5 - SUPER BARRIER RECTIFIER (Diodes)
  • SBR8E45P5 - SUPER BARRIER RECTIFIER (Diodes)
Other Datasheets by Daesan Electronics
  • SBR8100 - (SBR820 - SBR8100) CURRENT 8.0 AMPERES
  • SBR820 - (SBR820 - SBR8100) CURRENT 8.0 AMPERES
  • SBR830 - (SBR820 - SBR8100) CURRENT 8.0 AMPERES
  • SBR840 - (SBR820 - SBR8100) CURRENT 8.0 AMPERES
  • SBR850 - (SBR820 - SBR8100) CURRENT 8.0 AMPERES
  • SBR880 - (SBR820 - SBR8100) CURRENT 8.0 AMPERES
  • SBR5100 - SCHOTTKY BARRIER DIODE
  • SBR520 - (SBR520 - SBR5100) CURRENT 5.0 AMPERES VOLTAGE 20 TO 100 VOLTS

Full PDF Text Transcription

Click to expand full text

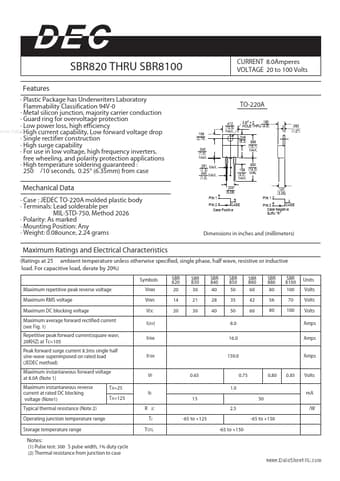

SBR820 THRU SBR8100 Features · Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 · Metal silicon junction, majority carrier conduction · Guard ring for overvoltage protection · Low power loss, high efficiency www.DataSheet4U.com · High current capability, Low forward voltage drop · Single rectifier construction · High surge capability · For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications · High temperature soldering guaranteed : 250¡É /10 seconds, 0.25" (6.35mm) from case CURRENT 8.0Amperes VOLTAGE 20 to 100 Volts TO-220A .412 (10.5) MAX. .180 3.8 f +.2 HOLE THRU (4.6) .248 (6.3) .595 (15.1) MAX. .550 .158 (14.0) (4.0) MIN. MAX. .200 (5.08) + .108 (2.75) .040 (1.0) MAX. .051 MAX. (1.3) .040 MAX. (1.0) .
