DS1005 Datasheet, line equivalent, Dallas Semiconducotr

DS1005 Features

• Line All-silicon time delay 5 taps equally spaced Delay tolerance ±2 ns or ±3%, whichever is greater Stable and precise over temperature and voltage range Leading and trailing edge accuracy

PDF File Details

Part number:

DS1005

Manufacturer:

Dallas Semiconducotr

File Size:

62.84kb

Download:

📄 Datasheet

Description:

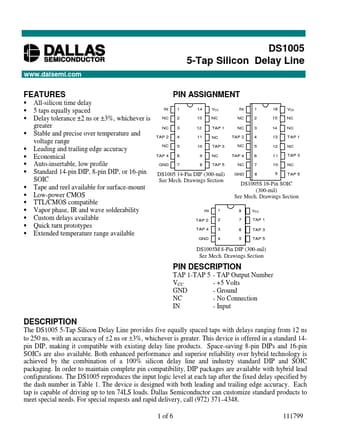

5-tap silicon delay line. TAP 1-TAP 5 VCC GND NC IN - TAP Output Number - +5 Volts - Ground - No Connection - Input DESCRIPTION The DS1005 5-Tap Silicon Delay

DS1005 Application

• Applications nsitive (decoupling, layout, etc.). TERMINOLOGY Period: The time elapsed between the leading edge of the first pulse and the leading e
