DS620 - Accuracy Digital Thermometer and Thermostat

DS620 Description

Low-Voltage, ±0.5°C Accuracy Digital Thermometer and Thermostat www.maxim-ic.com DS620 GENERAL .
The DS620 digital thermometer and thermostat provides low-voltage (1.

DS620 Features

* Low-Voltage Operation: 1.7V to 3.5V ±0.5°C Accuracy from 0°C to +70°C Operating Temperature Range: -55°C to +125°C (-67°F to +257°F) Temperature Measurements Require No External Components Resolution is User-Selectable to 10-, 11-, 12-, or 13-Bits (0.5°C, 0.25°C, 0.125°C, and 0.0625°C LSb Weight, Re

DS620 Applications

* it is multidroppable with three address pins that allow up to eight DS620s to operate on a single bus. The DS620 has thermostat functionality with userdefined thresholds stored in EEPROM registers, and it can be configured for standalone thermostat operation. The programmable output (PO) pin serves

📥 Download Datasheet

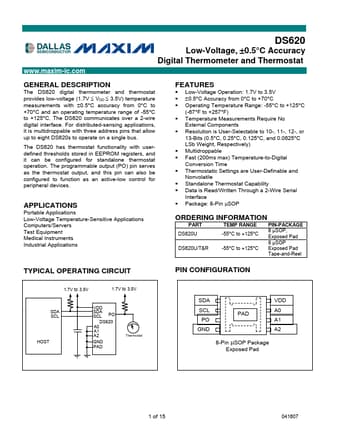

Preview of DS620 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS620
Manufacturer
Dallas Semiconducotr
File Size
239.79 KB
Datasheet
DS620_DallasSemiconducotr.pdf
Description
Accuracy Digital Thermometer and Thermostat
