DS1286

(DS1284 / DS1286) Watchdog Timekeepers

DS1286 Features

* Keeps Track of Hundredths of Seconds, Seconds, Minutes, Hours, Days, Date of the Month, Months, and Years; Valid Leap Year Compensation Up to 2100 Watchdog Timer Restarts an Out-of-Control Processor Alarm Function Schedules Real-Time-Related Activities Embedded Lithium Energy Cell Maintains Time, Wa

DS1286 General Description

The DS1284/DS1286 watchdog timekeepers are self-contained real-time clocks, alarms, watchdog timers, and interval timers in a 28-pin JEDEC DIP and encapsulated DIP package. The DS1286 contains an embedded lithium energy source and a www.DataSheet4U.com quartz crystal, which eliminates the need for a.

DS1286 Datasheet (426.62 KB)

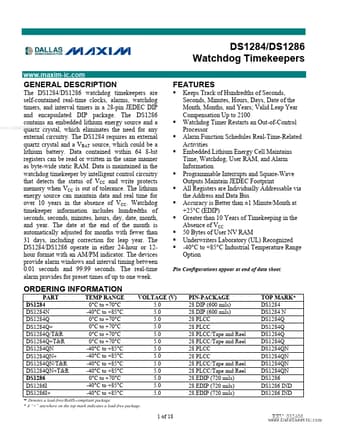

Preview of DS1286 PDF

Datasheet Details

Part number:

DS1286

Manufacturer:

Dallas Semiconductor

File Size:

426.62 KB

Description:

(ds1284 / ds1286) watchdog timekeepers.
