DS1693

(DS1689 / DS1693) 3-Volt/5-Volt Serialized Real-Time Clock

DS1693 Features

* Incorporates industry standard DS1287 PC clock plus enhanced features:

* +3- or +5V operation

* 64-bit silicon serial number

* 64-bit customer specific ROM or additional serial number available

* Power control circuitry supports system power-on from date/time alarm or key closure

DS1693 General Description

X1 X2 RCLR AD0-AD7 PWR KS CS ALE WR RD VCCO IRQ ORDERING INFORMATION PART # DS1689S DS1689SN DS1693 DESCRIPTION RTC IC, 28-pin SOIC RTC IC, 28-pin SOIC IND RTC Module; 28-pin DIP SQW VCCI GND VBAT VBAUX PSEL CEI CEO - Crystal Input - Crystal Output - RAM Clear Input - Mux’ed Address/Data Bus -.

DS1693 Datasheet (375.24 KB)

Preview of DS1693 PDF

Datasheet Details

Part number:

DS1693

Manufacturer:

Dallas Semiconductor

File Size:

375.24 KB

Description:

(ds1689 / ds1693) 3-volt/5-volt serialized real-time clock.

📁 Related Datasheet

DS1691 - (DS1688 / DS1691) 3 Volt/5 Volt Serialized Real Time Clock (Dallas Semiconductor)
.. DS1688/DS1691 DS1688/DS1691 3 Volt/5 Volt Serialized Real Time Clock with NV RAM Control FEATURES Incorporates industry standar.

DS1691 - Line Drivers (Texas Instruments)
DS1691A, DS3691 .ti. SNLS357E – JULY 1998 – REVISED APRIL 2013 DS3691 (RS-422/RS-423) Line Drivers with TRI-STATE Outputs Check for Samples: .

DS1691A - Line Drivers (National Semiconductor)
DS1691A/DS3691 (RS-422/RS-423) Line Drivers with TRI-STATE Outputs July 1998 DS1691A/DS3691 (RS-422/RS-423) Line Drivers with TRI-STATE® Outputs G.

DS1691A - Line Drivers (Texas Instruments)
DS1691A, DS3691 .ti. SNLS357E – JULY 1998 – REVISED APRIL 2013 DS3691 (RS-422/RS-423) Line Drivers with TRI-STATE Outputs Check for Samples: .

DS1692 - TRI-STATE Differential Line Drivers (National Semiconductor)
DS1692/DS3692 TRI-STATE Differential Line Drivers March 1992 DS1692/DS3692 TRI-STATE® Differential Line Drivers General Description The DS1692/DS36.

DS160-40THD02 - SCHOTTKY BARRIER DIODE (JCET)
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD WBFBP-02L Plastic-Encapsulate Diodes DS160-40THD02 SCHOTTKY BARRIER DIODE FEATURES z Low forward .

DS1602 - Elapsed Time Counter (Maxim Integrated)
. maxim-i c. DS1602 Elapsed Time Counter .maxim-ic. FEATURES § Two 32-bit counters keep track of real-time and elapsed time § Counters .

DS1603 - TRI-STATE Dual Receiver (National)
DS1603TRI-STATE Dual Receiver May 1999 DS1603 TRI-STATE ® Dual Receiver General Description The DS16033 is a dual differential TRI-STATE line receiv.

TAGS

DS1693 DS1689 DS1693 3-Volt 5-Volt Serialized Real-Time Clock Dallas Semiconductor

Image Gallery

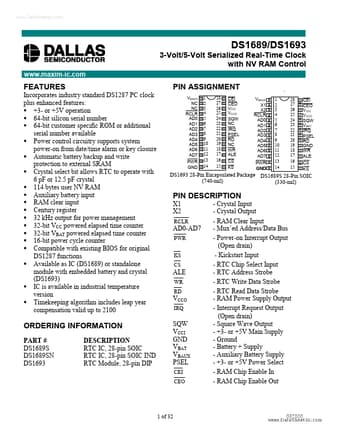

DS1693 Datasheet Preview Page 2 DS1693 Datasheet Preview Page 3
