DS1815

3.3V EconoReset

DS1815 Features

* Automatically restarts a microprocessor after power failure

* Maintains reset for 150ms after VCC returns to an in-tolerance condition

* Reduces need for discrete components

* Precision temperature-compensated voltage reference and voltage sensor

* Accurate 5%, 10% or 20% power

DS1815 General Description

TO-92 1 RST 2 VCC 3 GND Active Low Reset Output Power Supply Ground SOT-23 1 RST 2 VCC 3 GND Active Low Reset Output Power Supply Ground DESCRIPTION The DS1815 EconoReset uses a precision temperature reference and comparator circuit to monitor the status of the power supply (VCC). When an out-o.

DS1815 Datasheet (115.91 KB)

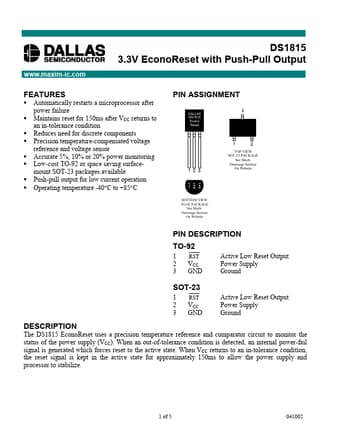

Preview of DS1815 PDF

Datasheet Details

Part number:

DS1815

Manufacturer:

Dallas Semiconductor

File Size:

115.91 KB

Description:

3.3v econoreset.
