DS1847 Datasheet - Dallas Semiconductor

Dual Temperature-Controlled NV Variable Resistor

DS1847 Features

* Two linear taper, temperature-controlled variable resistors DS1847-050 - One 50kW, 256 position - One 10kW, 256 position DS1847-010 - Two 10kW, 256 position Resistor settings changeable every 2°C Access to temperature data and device control via

DS1847 General Description

The DS1847 Dual Temperature-Controlled Nonvolatile (NV) Variable Resistor consists of two 256position linear, variable resistors. The DS1847-050 consists of one 10kW and one 50kW, while the DS1847-010 consists of two 10kW resistors; both incorporate a direct-to-digital temperature sensor. The device.

DS1847 Datasheet (282.80 KB)

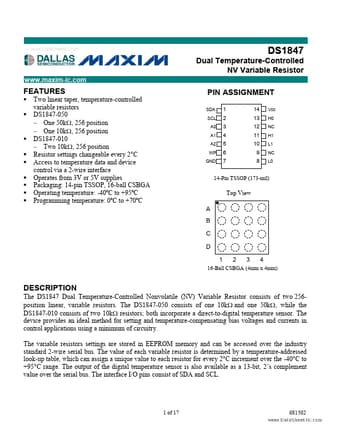

DS1847 Datasheet Preview — Preview of DS1847 PDF

Datasheet Details

Part number:

DS1847

Manufacturer:

Dallas Semiconductor

File Size:

282.80 KB

Description:

Dual temperature-controlled nv variable resistor.
