DS1995

16-kbit Memory iButton

DS1995 Features

* 16384 bits of read/write nonvolatile memory

* 256-bit scratchpad ensures integrity of data transfer

* Overdrive mode boosts communication to www.DataSheet4U.com 142 kbits per second

* Memory partitioned into 256-bit pages for packetizing data

* Data integrity assured with stric

DS1995 General Description

The DS1995 Memory iButton operates nearly identically to the DS1996. The main differences are: 16 kbits of memory organized as 64 pages of 32 bytes and a family code of 0A hexadecimal. For further details please refer to the DS1996 data sheet. 071999 .

DS1995 Datasheet (155.69 KB)

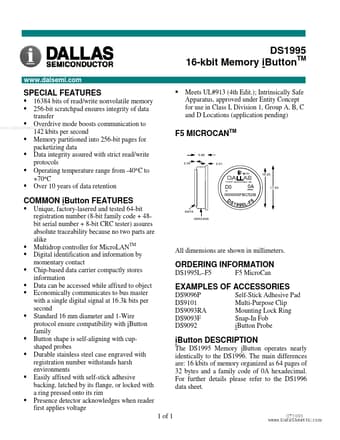

Preview of DS1995 PDF

Datasheet Details

Part number:

DS1995

Manufacturer:

Dallas Semiconductor

File Size:

155.69 KB

Description:

16-kbit memory ibutton.
