DS1996

64kbit Memory iButtonTM

DS1996 Features

* 65536 bits of read/write nonvolatile memory Overdrive mode boosts communication speed to 142k bits per second

* 256-bit scratchpad ensures integrity of data www.DataSheet4U.com transfer

* Memory partitioned into 256-bit pages for packetizing data

* Data integrity assured with strict read

DS1996 General Description

The DS1996 Memory iButton is a rugged read/write data carrier that acts as a localized database that can be easily accessed with minimal hardware. The nonvolatile memory offers a simple solution to storing and retrieving vital information pertaining to the object to which the iButton is attached. Da.

DS1996 Datasheet (367.82 KB)

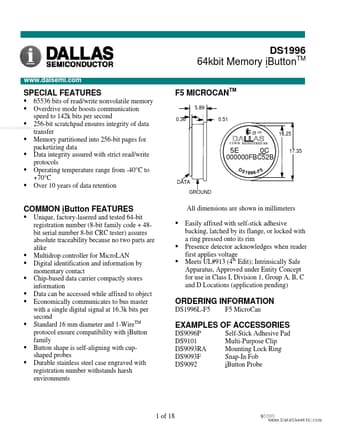

Preview of DS1996 PDF

Datasheet Details

Part number:

DS1996

Manufacturer:

Dallas Semiconductor

File Size:

367.82 KB

Description:

64kbit memory ibuttontm.
