DS9098P

iButton Retainer

DS9098P Features

* Compact receptacle for F5 iButton mounting Fully backward-compatible to DS9098 Contacts are stainless steel with selective tinlead plating for optimal solderability to printed circuit board Retainer to iButton connection is stainless steel to stainless steel Withstands up to 250°C for surface mounti

DS9098P General Description

The DS9098P iButton Retainer is a low-cost, surface-mount device to secure an F5 iButton on a printed circuit board. It consists of three metal pieces (two for GROUND, one for DATA) molded into a body of black, heat-stabilized, 30% glass fiber reinforced Nylon 46. When inserting an iButton into the .

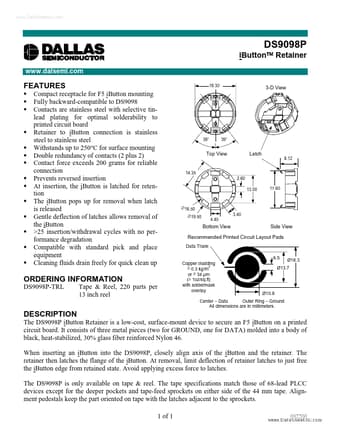

DS9098P Datasheet (88.99 KB)

Preview of DS9098P PDF

Datasheet Details

Part number:

DS9098P

Manufacturer:

Dallas Semiconductor

File Size:

88.99 KB

Description:

Ibutton retainer.
