DP30F600T101626

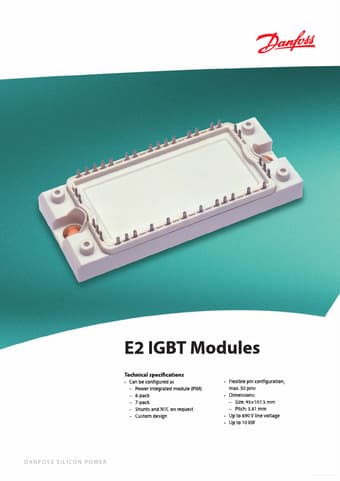

E2 IGBT Modules
Technical specifications
- Can be configured as
- Power integrated module (PIM)
- 6-pack
- 7-pack
- Shunts and NTC on request
- Custom design
- Flexible pin configuration, max. 50 pins
- Dimensions:
- Size: 45×107.5 mm
- Pitch: 3.81 mm
- Up to 690 V line voltage
- Up to 10 k W
DANFOSS SILICON POWER
Free Datasheet http://..
E2 IGBT Modules
Collector Emitter Voltage VCE DC Collector Current Ic @ TC = 80°C 10 A 15 A 600 V 20 A 30 A 50 A 10 A 15 A 1200 V 25 A 50 A 6-pack NTC DP10D600T
- 1016xx DP15D600T
- 1016xx DP20D600T
- 1016xx DP30D600T
- 1016xx DP50D600T
- 1016xx DP10D1200T
- 1016xx DP15D1200T
- 1016xx DP25D1200T
- 1016xx DP50D1200T
- 1016xx 7-pack NTC DP10E600T
- 1016xx DP15E600T
- 1016xx DP20E600T
- 1016xx DP30E600T
- 1016xx DP50E600T
- 1016xx DP10E1200T
- 1016xx DP15E1200T
- 1016xx DP25E1200T
- 1016xx PIM no brake NTC DP10F600T 101629 DP15F600T 101628 DP20F600T 101627 DP30F600T 101626 DP50F600T
- 1016xx DP10F1200T 101625 DP15F1200T 101624 DP25F1200T 101623 PIM brake...
