3D3608 Datasheet, Pulse Generators, Data Delay Devices

8-bit & 12-bit programmable pulse generators

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	DATA DELAY DEVICES INC	3D3608	3D3608R-100	PULSE GENERATOR DELAY LINE, PROGRAMMABLE, 1-FUNC, 255-TAP, COMPLEMENTARY OUTPUT, CMOS, PDSO16	Quest Components	1	2 units	$21	🛒 Buy Now

📥 Download PDF (375.97 KB)

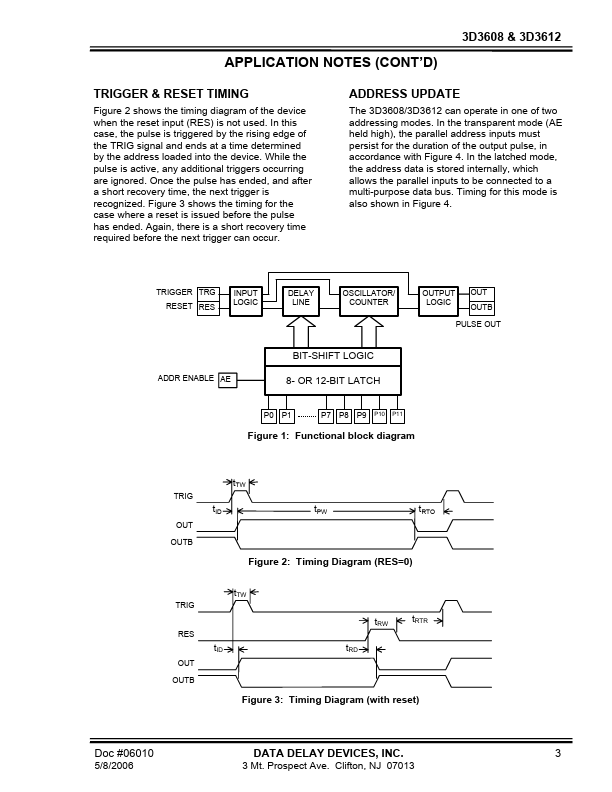

3D3608 Datasheet Preview Page 1 — Preview of 3D3608 Datasheet

PDF File Details

Part number:

3D3608

Manufacturer:

Data Delay Devices

File Size:

375.97 KB

Download:

📄 Download the 3D3608 Datasheet PDF

Description:

8-bit & 12-bit programmable pulse generators.
The 3D3608 & 3D3612 devices are versatile 8- & 12-bit programmable monolithic pulse generators.
A rising-edge on the trigger input (TRIG) initiates the pulse, which is presented on the output pins (OU.

✔ 3D3608 Features

All-silicon, low-power CMOS technology 3.3V operation Vapor phase, IR and wave solderable Programmable via latched parallel interface Increment range: 0

✔ 3D3608 Application

The thermal coefficient of the relative pulse width is limited to ±250 PPM/C (except for the -0.25), which
