RDC-19220 - 16-BIT MONOLITHIC TRACKING RESOLVER (LVDT)-TO-DIGITAL CONVERTERS

RDC-19220 Description

RDC-19220/2/4 SERIES Make sure the next Card you purchase has ® 16-BIT MONOLITHIC TRA CKING RESOL VER (L VDT)-T O-DIGIT AL CONVER TERS .
The RDC-19220 Ser ies of con verters are lo w-cost, v ersatile, 16-bit monolithic, state-of-the-ar t Resolv er(/LVDT)-to-Digital Con verters.

RDC-19220 Features

* +5 Volt Only Option
* Only Five External Passive Components
* Programmable: - Resolution: 10-, 12-, 14-, or 16-Bit - Bandwidth: to 1200 Hz - Tracking: to 2300 RPS
* Differential Resolver and LVDT Input Modes
* Velocity Output Eliminates Tachometer

RDC-19220 Applications

* With its low cost, small size, high accuracy and versatile performance, the RDC-19220 Series converter is ideal for use in modern high-performance industrial and militar y control systems. Typical applications include motor control, r adar antenna positioning, machine tool control, robotics , and pr

📥 Download Datasheet

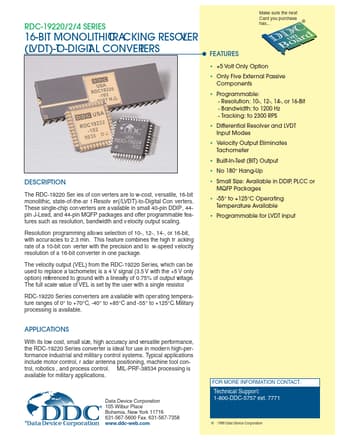

Preview of RDC-19220 PDF
