RD-19230, 16-Bit Monolithic Tracking Resolver to Digital Converter

www.DataSheet4U.com Make sure the next Card you purchase has ® RD-19230 16-BIT MONOLITHIC TRACKING RESOLVER-TO-DIGITAL CONVERTER .
The RD-19230 is a small and versatile, low cost, state-of-the-art 16bit monolithic Resolver-to-Digital Converter.

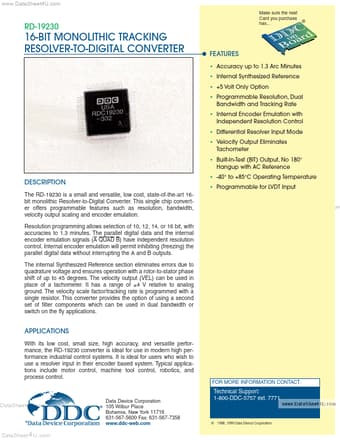

datasheet Preview Page 1 from Datasheet4u.com

RD-19230_DataDevice.pdf

RD-19230 Datasheet Preview — Preview of RD-19230 PDF

Datasheet Details

Part number:

RD-19230

Manufacturer:

Data Device

File Size:

607.16 KB

Description:

16-Bit Monolithic Tracking Resolver to Digital Converter

Features

* Accuracy up to 1.3 Arc Minutes
* Internal Synthesized Reference
* +5 Volt Only Option
* Programmable Resolution, Dual Bandwidth and Tracking Rate
* Internal Encoder Emulation with Independent Resolution Control
* Differential Resolver Input Mode

Applications

* -40° to +85°C Operating Temperature
* Programmable for LVDT Input ee DataSh APPLICATIONS With its low cost, small size, high accuracy, and versatile performance, the RD-19230 converter is ideal for use in modern high performance industrial control systems. It is ideal for users
