NT805-801 Datasheet - Datatronics

NT805-801 (NT805-xxx) Dual Ports 10/100 Base-TX High Speed LAN Magnetic Modulas

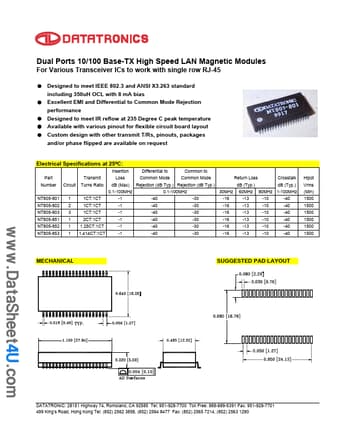

Dual Ports 10/100 Base-TX High Speed LAN Magnetic Modules For Various Transceiver ICs to work with single row RJ-45 Designed to meet IEEE 802.3 and ANSI X3.263 standard including 350uH OCL with 8 mA bias Excellent EMI and Differential to Common Mode Rejection performance Designed to meet IR reflow at 235 Degree C peak temperature Available with various pinout for flexible circuit board layout Custom design with other transmit T/Rs, pinouts, packages and/or phase flipped are available on request .

NT805-801_Datatronics.pdf

Preview of NT805-801 PDF
NT805-801 Datasheet Preview Page 2 NT805-801 Datasheet Preview Page 3

Datasheet Details

Part number:

NT805-801

Manufacturer:

Datatronics

File Size:

141.05 KB

Description:

(nt805-xxx) dual ports 10/100 base-tx high speed lan magnetic modulas.
