DM9131

10/100Mbps Fast Ethernet Physical Layer Single Chip Transceiver

DM9131 Features

* 3 Pin Configuration: DM9101E LQFP 4 Pin Description 5 T Normal MII Interface, 21 pins5 T Media Interface, 5 pins 6 T LED Interface, 5 pins 6 T Mode, 11 pins 7 T Bias and Clock, 6 pins 7 T Power and Others, 52 pins8 Functional Description T Transmit Section 9 T 100Base-TX Operation 9 T MII Serial Man

DM9131 General Description

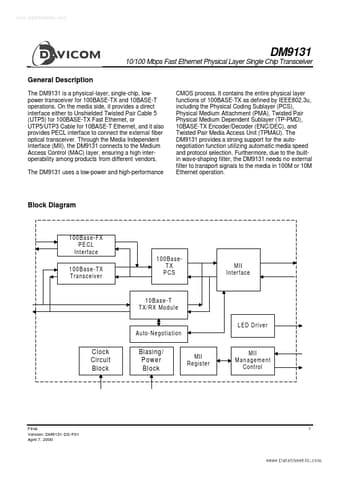

The DM9131 is a physical-layer, single-chip, lowpower transceiver for 100BASE-TX and 10BASE-T operations. On the media side, it provides a direct interface either to Unshielded Twisted Pair Cable 5 (UTP5) for 100BASE-TX Fast Ethernet, or UTP5/UTP3 Cable for 10BASE-T Ethernet, and it also provides PE.

DM9131 Datasheet (231.80 KB)

Preview of DM9131 PDF

Datasheet Details

Part number:

DM9131

Manufacturer:

Davicom Semiconductor Incorporated

File Size:

231.80 KB

Description:

10/100mbps fast ethernet physical layer single chip transceiver.
