DH2F100N4S Datasheet, Module, Dawin Electronics

DH2F100N4S Features

  • Module Repetitive Reverse Voltage : VRRM = 400V Low Forward Voltage Drop : VF(typ.) = 1.05V Average Forward Current : IF(AV.) = 100A @ Tc = 100 Ultra-Fast Reverse Recovery Time : trr(typ.) = 9

PDF File Details

Part number:

DH2F100N4S

Manufacturer:

Dawin Electronics

File Size:

37.98kb

Download:

📄 Datasheet

Description:

Ultra-fast soft recovery diode module. Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems. These di

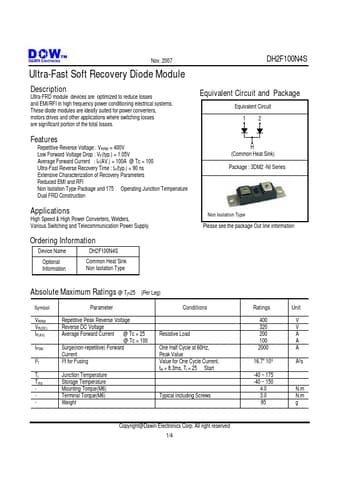

Datasheet Preview: DH2F100N4S 📥 Download PDF (37.98kb)
Page 2 of DH2F100N4S Page 3 of DH2F100N4S

DH2F100N4S Application

  • Applications where switching losses are significant portion of the total losses. Features Repetitive Reverse Voltage : VRRM = 400V Low Forward Volt
