Part number:
DM2G100SH6N
Manufacturer:
Dawin Electronics
File Size:
297.51 KB
Description:
High power rugged type igbt module.
DM2G100SH6N Datasheet (297.51 KB)

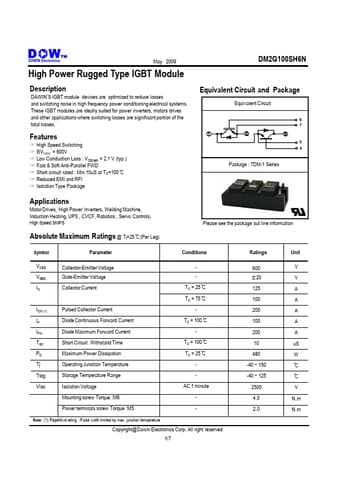

* ☞ High Speed Switching ☞ BVCES = 600V ☞ Low Conduction Loss : VCE(sat) = 2.1 V (typ.) ☞ Fast & Soft Anti-Parallel FWD ☞ Short circuit rated : Min.10uS at TC=100℃ ☞ Reduced EMI and RFI ☞ Isolation Type Package Equivalent Circuit and Package Equivalent Circuit ①② 6 7 ③ 5 4 Package : 7DM-1 Series
DM2G100SH6N Datasheet (297.51 KB)
DM2G100SH6N
Dawin Electronics
297.51 KB
High power rugged type igbt module.
