* Glass passivated junction
* 3000 Watts Peak Pulse Power capability on 10/1000 µs waveform
* Excellent clamping capability
* Low zener impedance
* Fast response time R-6 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-2
3KP150
Dc Components
45.08 KB
Transient voltage suppressors.

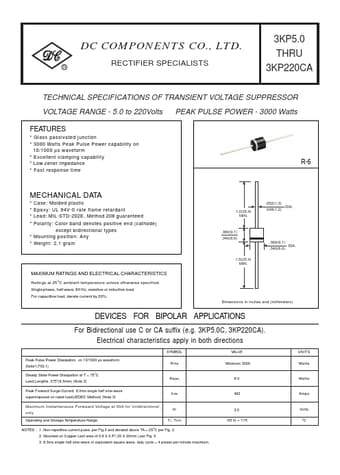

DC COMPONENTS CO., LTD.
R RECTIFIER SPECIALISTS
3KP5.0 THRU 3KP220CA
TECHNICAL SPECIFICATIONS OF TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE RANGE - 5.0 to.
