BZT52C30S, BZT52C2V4S Datasheet - Dc Components

BZT52C30S - SURFACE MOUNT ZENER DIODES

BZT52C30S Features

* Planar Die construction

* Zener Voltages from 2.4V - 39V

* 410mW Power Dissipation

* Ideally Suited for Automated Assembly Processes SOD-323 MECHANICAL DATA

* Case: Molded Plastic

* Terminals:Solder plated, solderable per MIL-STD-202, Method 208

* Polarity: See Diagra

BZT52C2V4S-DcComponents.pdf

This datasheet PDF includes multiple part numbers: BZT52C30S, BZT52C2V4S. Please refer to the document for exact specifications by model.

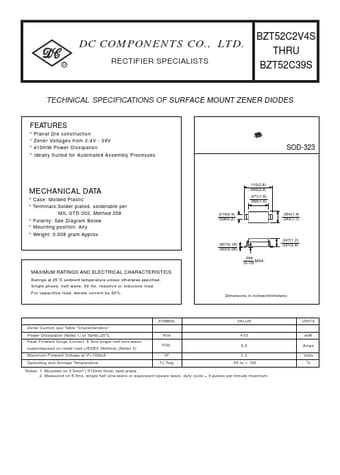

BZT52C30S Datasheet Preview Page 2

Datasheet Details

Part number:

BZT52C30S, BZT52C2V4S

Manufacturer:

Dc Components

File Size:

249.17 KB

Description:

Surface mount zener diodes.

Note:

This datasheet PDF includes multiple part numbers: BZT52C30S, BZT52C2V4S.
Please refer to the document for exact specifications by model.
