| Part number | DCR06D, DCR06C |
|---|---|
| Manufacturer | Dc Components |
| File Size | 76.21 KB |
| Description | SENSITIVE GATE SILICON CONTROLLED RECTIFIER |
| Datasheet |

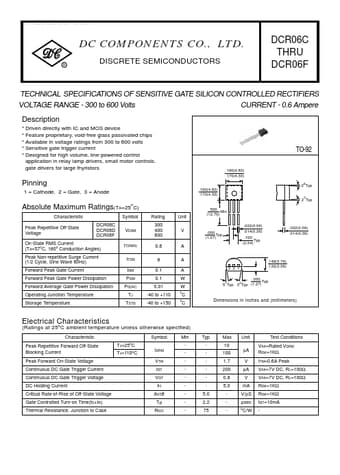

 DCR06C_DcComponents.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: DCR06D, DCR06C. Please refer to the document for exact specifications by model. |
Driven directly with IC and MOS device Feature proprietary, void-free glass passivated chips Available in voltage ratings from 300 to 600 volts Sensitive gate trigger current Designed for high volume, line-powered control application in relay lamp drivers, small motor controls, gate drivers for large thyristors TO-92 .190(4.83) .170(4.33) .190(4.83) .170(4.33) 2 Typ o o Pinning 1 = Cathode, 2 = Gate, 3 = Anode 2 Typ Absolute Maximum Ratings(TA=25 Characteristic
