| Part number | DCR100-6 |
|---|---|
| Manufacturer | Dc Components |
| File Size | 239.97 KB |
| Description | SENSITIVE GATE SILICON CONTROLLED RECTIFIER |
| Datasheet |

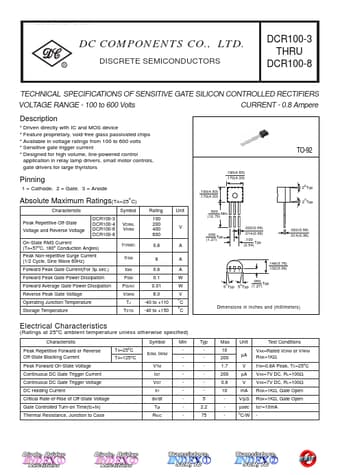

 DCR100-6 Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: DCR100-6, DCR100-3. Please refer to the document for exact specifications by model. |
|
|
|
Driven directly with IC and MOS device Feature proprietary, void-free glass passivated chips Available in voltage ratings from 100 to 600 volts Sensitive gate trigger current Designed for high volume, line-powered control application in relay lamp drivers, small motor controls, gate drivers for large thyristors TO-92 .190(4.83) .170(4.33) .190(4.83) .170(4.33) 2 Typ o o Pinning 1 = Cathode, 2 = Gate, 3 = Anode Absolute Maximum Ratings(TA=25oC) Characteristic Peak
