DCR506-3 - SENSITIVE GATE SILICON CONTROLLED RECTIFIER

Dc Components

DCR506-3 Datasheet Preview — Preview of DCR506-3 PDF

Datasheet Details

Part number	DCR506-3
Manufacturer	Dc Components
File Size	61.57 KB
Description	SENSITIVE GATE SILICON CONTROLLED RECTIFIER
Datasheet	DCR506-3_DcComponents.pdf

DCR506-3 Product details

Description

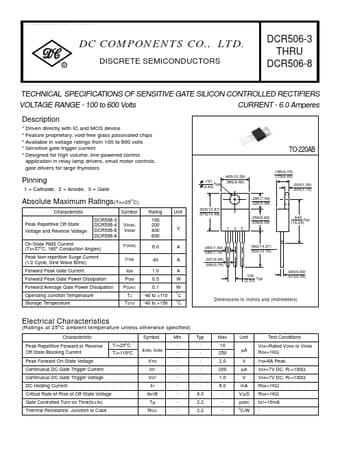

Driven directly with IC and MOS device Feature proprietary, void-free glass passivated chips Available in voltage ratings from 100 to 600 volts Sensitive gate trigger current Designed for high volume, line-powered control application in relay lamp drivers, small motor controls, gate drivers for large thyristors TO-220AB .185(4.70) .173(4.40) .055(1.39) .045(1.15) .295(7.49) .220(5.58) Pinning 1 = Cathode, 2 = Anode, 3 = Gate .151 Typ (3.83) .405(10.28) .380(9.66
