DE7812A 3-TERMINAL POSITIVE VOLTAGE REGULATOR

These regulators empoly internal current limiting and thermal shutdown, making them essentially indestructible. They can deliver over 1A output current with adequate heatsinking. They are intended as fixed voltage regulators in a wide range of applications including local, on-card regulation for eli.

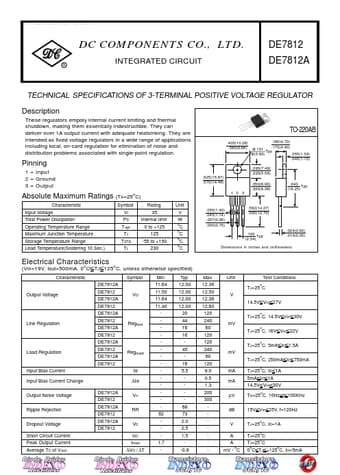

DE7812_DcComponents.pdf

DE7812A Datasheet Preview — This datasheet PDF includes multiple part numbers: DE7812A, DE7812. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DE7812A, DE7812

Manufacturer:

Dc Components

File Size:

218.47 KB

Description:

3-terminal positive voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: DE7812A, DE7812.
Please refer to the document for exact specifications by model.
