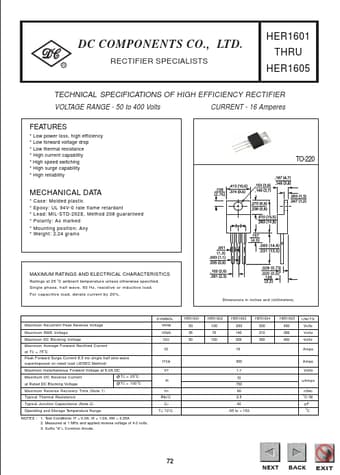

DC COMPONENTS CO., LTD.
R
HER1601 THRU HER1605
RECTIFIER SPECIALISTS
TECHNICAL SPECIFICATIONS OF HIGH EFFICIENCY RECTIFIER
VOLTAGE RANGE - 50 to 400 Volts CURRENT - 16 Amperes
FEATURES
* * * * * * * Low power loss, high efficiency Low forward voltage drop Low thermal resistance High current capability High speed switching High surge capability High reliability
TO-220
MECHANICAL DATA
* * * * * * Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: MIL-STD-202E, Method 208 guaranteed Polarity: As marked Mounting position: Any Weight: 2.24 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
