MB502, MB506 Datasheet - Dc Components

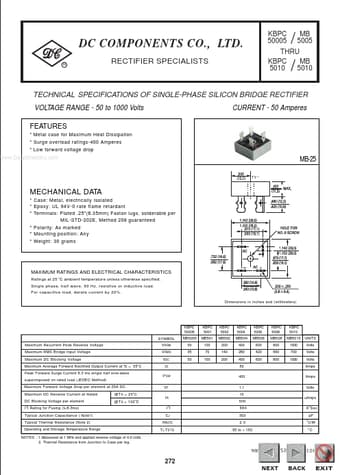

MB502 - (MB5005 - MB5010) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

MB502 Features

* Metal case for Maximum Heat Dissipation

* Surge overload ratings-400 Amperes

* Low forward voltage drop www.DataSheet4U.com MB-25 TY MECHANICAL DATA

* Case: Metal, electrically isolated

* Epoxy: UL 94V-0 rate flame retardant

* Terminals: Plated .25"(6.35mm) Faston lugs,

MB506_DcComponents.pdf

This datasheet PDF includes multiple part numbers: MB502, MB506. Please refer to the document for exact specifications by model.
MB502 Datasheet Preview Page 2

Datasheet Details

Part number:

MB502, MB506

Manufacturer:

Dc Components

File Size:

500.42 KB

Description:

(mb5005 - mb5010) technical specifications of single-phase silicon bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: MB502, MB506.
Please refer to the document for exact specifications by model.
