MBR3510W, MBR3505W Datasheet - Dc Components

MBR3510W SINGLE-PHASE SILICON BRIDGE RECTIFIER

MBR3510W Features

* Plastic case with heatsink for Maximum Heat Dissipation

* Diffused Junction

* High current capability

* Surge overload ratings - 400 Amperes

* Low forward voltage drop

* High Reliability .500 (12.7) TYP. METAL HEAT SINK .310(7.9) .290(7.4) .591 MAX. (15.0) MBR-25W MECHANI

MBR3505W_DcComponents.pdf

This datasheet PDF includes multiple part numbers: MBR3510W, MBR3505W. Please refer to the document for exact specifications by model.

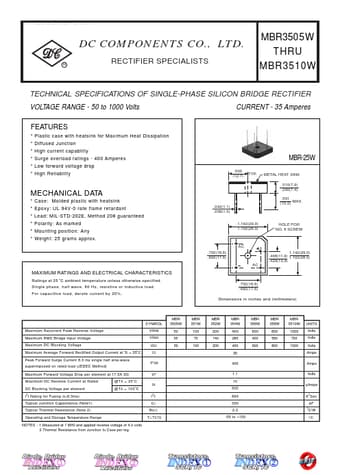

MBR3510W Datasheet Preview Page 2

Datasheet Details

Part number:

MBR3510W, MBR3505W

Manufacturer:

Dc Components

File Size:

286.37 KB

Description:

Single-phase silicon bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: MBR3510W, MBR3505W.
Please refer to the document for exact specifications by model.
