MP6005 SINGLE-PHASE SILICON BRIDGE RECTIFIER

MP6005 Description

www.DataSheet4U.com DC COMPONENTS CO., LTD.R MP6005 THRU MP610 RECTIFIER SPECIALISTS TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECT.

MP6005 Features

* Surge overload rating: 125 Amperes peak
* Low forward voltage drop
* Small size: simple installation MP-6 METAL HEAT SINK MECHANICAL DATA
* Case: Molded plastic with heatsink
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity

📥 Download Datasheet

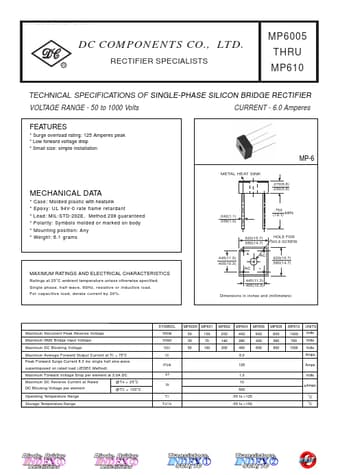

Preview of MP6005 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MP6005
Manufacturer
Dc Components
File Size
307.94 KB
Datasheet
MP6005_DcComponents.pdf
Description
SINGLE-PHASE SILICON BRIDGE RECTIFIER
