SD850S, SD820S SCHOTTKY BARRIER RECTIFIER

SD850S Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS SD820S THRU SD8100S TECHNICAL SPECIFICATIONS OF SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE - 20 to 10.

SD850S Features

* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency
* High current capability
* Low forward voltage drop
* High surge capacity

SD850S Applications

* MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
* Mounting position: Any
* Weight: 0.4 grams Approx. TO-252(DPAK) .268(6.8) .252(6.4) .217(5.5) .205(5.2) 4 .063(1.6) .055(1.4) .0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD850S, SD820S. Please refer to the document for exact specifications by model.

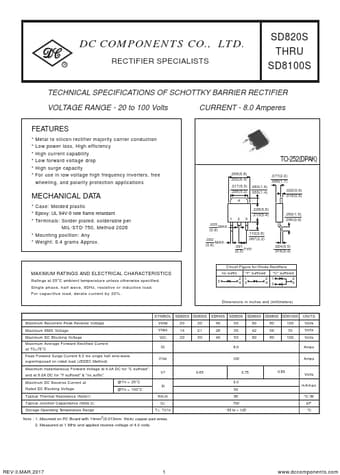

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD850S, SD820S
Manufacturer
Dc Components
File Size
66.38 KB
Datasheet
SD820S-DcComponents.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SD850S, SD820S.
Please refer to the document for exact specifications by model.
