SM260 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • High current capability.
  • Ideal for surface mounted.

📥 Download Datasheet

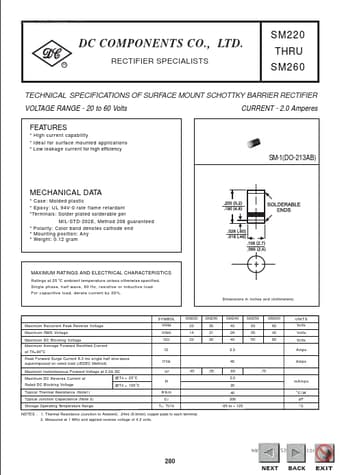

Datasheet preview – SM260

Datasheet Details

Part number SM260
Manufacturer Dc Components
File Size 451.02 KB
Description TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet SM260 Datasheet
Additional preview pages of the SM260 datasheet.

📁 Similar Datasheet

  • SM2601PSC - P-Channel MOSFET (Sinopower)
  • SM2602NSC - N-Channel MOSFET (Sinopower)
  • SM2604NSC - N-Channel MOSFET (Sinopower)
  • SM2605PSC - P-Channel MOSFET (Sinopower)
  • SM2607CSC - MOSFET (Sinopower)
  • SM2608NSC - N-Channel MOSFET (Sinopower)
  • SM2609PSC - P-Channel MOSFET (Sinopower)
  • SM260A - Schottky Barrier Rectifiers (Leshan Radio Company)
  • SM260A - 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (GW)
  • SM260A - Surface Mount Schottky Barrier Rectifiers (SeCoS)
Other Datasheets by Dc Components
  • SM220 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SM230 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SM240 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SM250 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com DC COMPONENTS CO., LTD. R SM220 THRU SM260 RECTIFIER SPECIALISTS TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE - 20 to 60 Volts CURRENT - 2.0 Amperes FEATURES * High current capability * Ideal for surface mounted applications * Low leakage current for high efficiency SM-1(DO-213AB) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant *Terminals: Solder plated solderable per MIL-STD-202E, Method 208 guaranteed * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.12 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
