FL75L20A, FL75L05A - (FL75L05A - FL75L20A) Delphi Series Filter Module

FL75L20A Description

FL75R10A Filter Module 75Vdc Input Maximum, 10A Maximum .

FL75L20A Features

* ROHS Compliant Small size: 25.4mm x 25.4mm x 10.2mm (1.0” x 1.0” x 0.4”) Industry standard footprint and pin-out Optimized for use with high frequency board mounted DC/DC converters Printed-circuit board mountable ISO 9001, TL 9000, ISO 14001, QS 9000, OHSAS 18001 certified manufacturing facility UL

FL75L20A Applications

* Common-mode and differential-mode filtering of power supply dc input and output line Computer application Communications equipment DATASHEET DS_FL75L05_ 10172005 SPECIFICATIONS GENERAL SPECIFICATIONS Input voltage, continuous Input voltage, transient Typical Typical 0~75V 100V -40¢J -55¢J ~ 120¢J

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FL75L20A, FL75L05A. Please refer to the document for exact specifications by model.

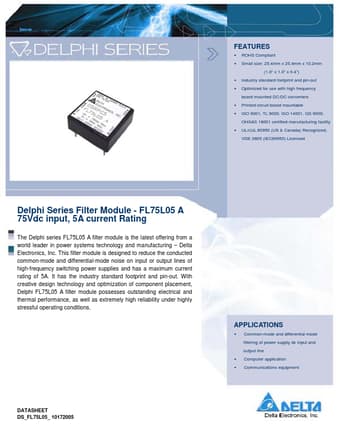

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FL75L20A, FL75L05A
Manufacturer
Delta Electronics
File Size
342.78 KB
Datasheet
FL75L05A_DeltaElectronics.pdf
Description
(FL75L05A - FL75L20A) Delphi Series Filter Module
Note
This datasheet PDF includes multiple part numbers: FL75L20A, FL75L05A.
Please refer to the document for exact specifications by model.
