IPM24S0B0R03FA - Integrated Point-of-Load Power Modules

Datasheet Summary

Features

  • High efficiency: 91% @ 12Vin, 6.5V/3A 88% @ 24Vin, 6.5V/3A Small size and low profile: 17.8x15.0x7.8mm (0.70”x0.59”x0.31”) Output voltage adjustment: 3.3V~6.5V Monotonic startup into normal and pre-biased loads Input UVLO, output OCP Remote ON/OFF Output short circuit protection Fixed frequency operation Copper pad to provide excellent thermal performance ISO 9001, TL 9000, ISO 14001, QS9000, OHSAS18001 certified manufacturing facility UL/cUL 60950 (US & Canada) Recognized, and TUV (EN60950) Cer.

📥 Download Datasheet

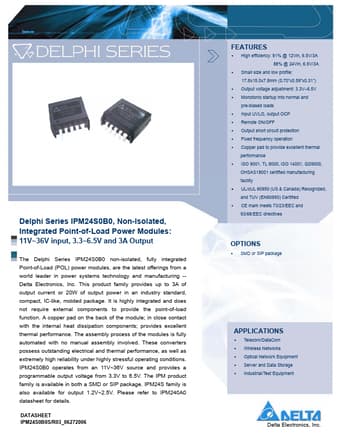

Datasheet preview – IPM24S0B0R03FA

Datasheet Details

Part number IPM24S0B0R03FA
Manufacturer Delta Electronics
File Size 663.46 KB
Description Integrated Point-of-Load Power Modules
Datasheet download datasheet IPM24S0B0R03FA Datasheet
Additional preview pages of the IPM24S0B0R03FA datasheet.

📁 Similar Datasheet

  • IPM-170 - Low Cost CW K-Band Transceiver (InnoSenT)
  • IPM6210A - Precision Dual PWM Controller And Linear Regulator (Intersil Corporation)
  • IPM6220 - Advanced Triple PWM and Dual Linear Power Controller for Portable (Intersil Corporation)
  • IPM6220A - Advanced Triple PWM and Dual Linear Power Controller (Intersil Corporation)
  • IPM6220EVAL1 - Advanced Triple PWM Only Mode and Dual Linear Power Controller for Portable Applications (Intersil Corporation)
Other Datasheets by Delta Electronics

Full PDF Text Transcription

Click to expand full text
FEATURES High efficiency: 91% @ 12Vin, 6.5V/3A 88% @ 24Vin, 6.5V/3A Small size and low profile: 17.8x15.0x7.8mm (0.70”x0.59”x0.31”) Output voltage adjustment: 3.3V~6.5V Monotonic startup into normal and pre-biased loads Input UVLO, output OCP Remote ON/OFF Output short circuit protection Fixed frequency operation Copper pad to provide excellent thermal performance ISO 9001, TL 9000, ISO 14001, QS9000, OHSAS18001 certified manufacturing facility UL/cUL 60950 (US & Canada) Recognized, and TUV (EN60950) Certified CE mark meets 73/23/EEC and 93/68/EEC directives Delphi Series IPM24S0B0, Non-Isolated, Integrated Point-of-Load Power Modules: 11V~36V input, 3.3~6.5V and 3A Output www.DataSheet4U.
