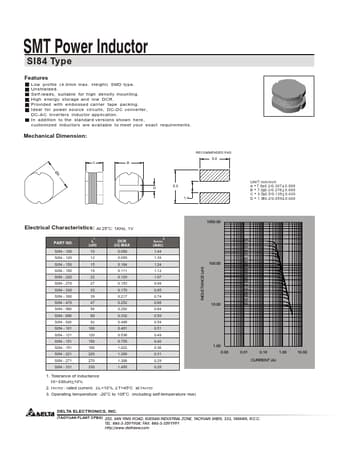

SI84
Features
Low profile (4.0mm max. Height) SMD type. Unshielded. Self-leads, suitable for high density mounting. High energy storage and low DCR. Provided with embossed carrier tape packing. Ideal for power source circuits, DC-DC converter, DC-AC inverters inductor application. In addition to the standard versions shown here, customized inductors are available to meet your exact requirements.
Mechanical Dimension:
REMENDED PAD
Electrical Characteristics:
PART NO.
- 100 SI84
- 120 SI84
- 150 SI84
- 180 SI84
- 220 SI84
- 270 SI84
- 330 SI84
- 390 SI84
- 470 SI84
- 560 SI84
- 680 SI84
- 820 SI84
- 101 SI84
- 121 SI84
- 151 SI84
- 181 SI84
- 221 SI84
- 271 SI84
- 331
INDUCTANCE (u H)
1. Tolerance of inductance 10~330u H 10% 2. I RATED : rated current. L<10%, T<45o C at I RATED 3. Operating temperature: -20o C to 105o C (including self-temperature rise)
8.0 1.4
UNIT:mm/inch A = 7.8 0.2/0.307 B = 7.0 0.2/0.276 C = 3.5 0.5/0.138 D = 1.5 0.2/0.059
0.008 0.008 0.020...
