DG06S0503A DG06S/D Series 6W DC/DC CONVERTER

DG06S0503A Description

DG06S/D Series 6W DC/DC CONVERTER, DIP-Package, 2:1 Wide Input Range .

DG06S0503A Features

* Efficiency up to 86% DIP Package with Industry Standard Pinout 1500VDC Voltage Isolation 2:1 Wide Input Range Low ripple and noise Complies with EN55022 Class A Temperature Performance -40℃ to +71℃ Short Circuit Protection Internal SM

📥 Download Datasheet

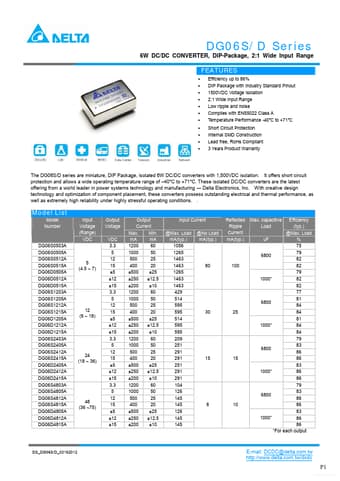

Preview of DG06S0503A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DG06S0503A
Manufacturer
Delta
File Size
233.11 KB
Datasheet
DG06S0503A_Delta.pdf
Description
DG06S/D Series 6W DC/DC CONVERTER
