HMS0864B - HMS0864B Series

📥 Download Datasheet

Datasheet preview – HMS0864B

Datasheet Details

Part number HMS0864B
Manufacturer Delta
File Size 72.52 KB
Description HMS0864B Series
Datasheet download datasheet HMS0864B Datasheet
Additional preview pages of the HMS0864B datasheet.

📁 Similar Datasheet

  • HMS-23KMK381P3V - DC 3V 6-wire Stepper Motor (ETC)
  • HMS100N06KA - N-Channel Super Trench Power MOSFET (H&M Semiconductor)
  • HMS100N15 - N-Channel Super Trench Power MOSFET (H&M Semiconductor)
  • HMS100N20 - N-Channel Super Trench II Power MOSFET (H&M Semiconductor)
  • HMS100N20D - N-Channel Super Trench II Power MOSFET (H&M Semiconductor)
  • HMS100N85 - N-Channel Super Trench II Power MOSFET (H&M Semiconductor)
  • HMS100N85D - N-Channel Super Trench II Power MOSFET (H&M Semiconductor)
  • HMS10DN10Q - Dual N-Channel Enhancement Mode MOSFET (H&M Semiconductor)
  • HMS10N15D - N-Channel Super Trench Power MOSFET (H&M Semiconductor)
  • HMS11N65D - 650V Super-Junction MOSFET (H&M Semiconductor)
Other Datasheets by Delta

Full PDF Text Transcription

Click to expand full text

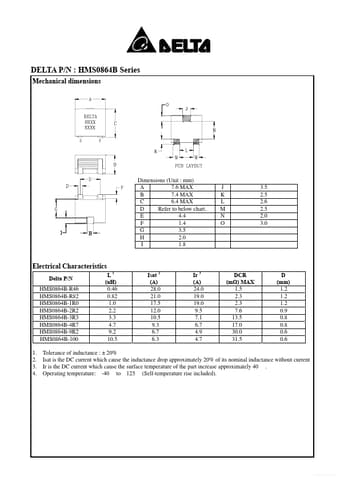

DELTA P/N : HMS0864B Series Mechanical dimensions Dimensions (Unit : mm) A 7.6 MAX B 7.4 MAX C 6.4 MAX D Refer to below chart. E 4.4 F 1.4 G 3.5 H 2.0 I 1.8 J K L M N O 3.5 2.5 2.6 2.5 2.0 3.0 Electrical Characteristics Delta P/N HMS0864B-R46 HMS0864B-R82 HMS0864B-1R0 HMS0864B-2R2 HMS0864B-3R3 HMS0864B-4R7 HMS0864B-9R2 HMS0864B-100 1. 2. 3. 4. L1 (uH) 0.46 0.82 1.0 2.2 3.3 4.7 9.2 10.5 Isat 2 (A) 28.0 21.0 17.5 12.0 10.5 9.3 6.7 6.3 Ir 3 (A) 24.0 19.0 19.0 9.5 7.1 6.7 4.9 4.7 DCR (mΩ) MAX 1.5 2.3 2.3 7.6 13.5 17.0 30.0 31.5 D (mm) 1.2 1.2 1.2 0.9 0.8 0.8 0.6 0.
