561-0104-XXX
561-0104-XXX is (561-xx0x-XXX) 5mm LED CBI Circuit Board Indicator Vertical manufactured by Dialight Corporation.
..

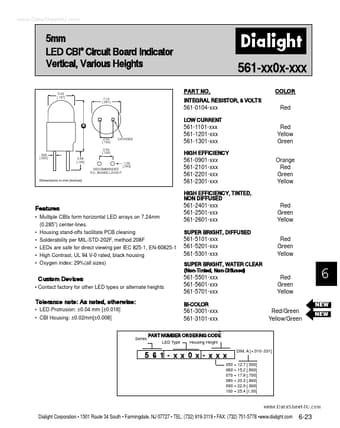

5mm LED CBI® Circuit Board Indicator Vertical, Various Heights
5.00 [.197]
561-xx0x-xxx
PART NO. COLOR Red
INTEGRAL RESISTOR, 5 VOLTS
7.14 [.281]
HOUSING TYPE DIM. A -050 12.7 [.500] -070 17.8 [.700] -100 25.4 [1.00]
LOW CURRENT
2.54 [.100] 2.54 [.100] 3.68 [.145]
CATHODE
561-1101-xxx 561-1201-xxx 561-1301-xxx
HIGH EFFICIENCY
Red Yellow Green Orange Red Green Yellow
.508 [.020]
1.09 [.043] REMENDED P.C. BOARD LAYOUT
Dimensions in mm [inches]
561-0901-xxx 561-2101-xxx 561-2201-xxx 561-2301-xxx
HIGH EFFICIENCY, TINTED, NON DIFFUSED
Features
- Multiple CBIs form horizontal LED arrays on 7.24mm (0.285”) center-lines.
- Housing stand-offs facilitate PCB cleaning
- Solderability per MIL-STD-202F, method 208F
- LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
- High Contrast, UL 94 V-0 rated, black housing
- Oxygen index: 29%(all sizes)
561-2401-xxx 561-2501-xxx 561-2601-xxx
SUPER BRIGHT, DIFFUSED
Red Green Yellow
561-5101-xxx 561-5201-xxx...
