DA14680 - Bluetooth Low Energy 4.2 SoC

Product Overview

Dialog Semiconductor

Datasheet Details

Part number	DA14680
Manufacturer	Dialog Semiconductor
File Size	4.88 MB
Description	Bluetooth Low Energy 4.2 SoC
Datasheet	DA14680 Datasheet

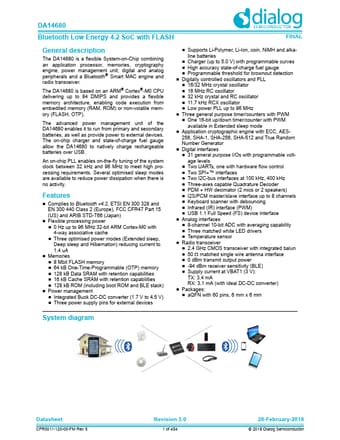

Additional preview pages of the DA14680 datasheet.

Product details

Description

Supports Li-Polymer, Li-Ion, coin, NiMH and alka- The DA14680 is a flexible System-on-Chip combining an application processor, memories, cryptography engine, power management unit, digital and analog peripherals and a Bluetooth® Smart MAC engine and radio transceiver.The DA14680 is based on an ARM® Cortex®-M0 CPU line batteries Charger (up to 5.0 V) with programmable curves High accuracy state-of-charge fuel gauge Programmable threshold for brownout detection Di

Features

PDM + HW decimator (2 mics or 2 speakers).
I2S/PCM master/slave interface up to 8 channels.
Complies to Bluetooth v4.2, ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan).
Flexible processing power.
0 Hz up to 96 MHz 32-bit ARM Cortex-M0 with 4-way associative cache.
Three optimised power modes (Extended sleep, Deep sleep and Hibernation) reducing current to 1.4 uA.
Memories.
8 Mbit FLASH memory.
64 kB.
