DA7202, 10W Mono Class-D Amplifier

DA7202 10 W Mono Class-D Amplifier for 2S Battery Devices Company confidential General .
DA7202 is a powerful, high efficiency, low EMI Class-D speaker driver that can drive 10 W into 4 Ω loads directly from a 2S lithium ion battery pack.

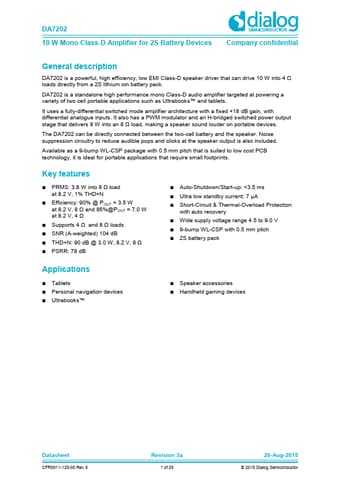

datasheet Preview Page 1 from Datasheet4u.com

DA7202-DialogSemiconductor.pdf

DA7202 Datasheet Preview — Preview of DA7202 PDF

Datasheet Details

Part number:

DA7202

Manufacturer:

Dialog Semiconductor

File Size:

0.98 MB

Description:

10W Mono Class-D Amplifier

Applications

* such as Ultrabooks™ and tablets. It uses a fully-differential switched mode amplifier architecture with a fixed +18 dB gain, with differential analogue inputs. It also has a PWM modulator and an H-bridged switched power output stage that delivers 8 W into an 8 Ω load, making a speaker sound louder o
