15KP120A, 15KP17 - 15000W TRANSIENT VOLTAGE SUPPRESSOR

Digitron Semiconductors

📥 Download Datasheet

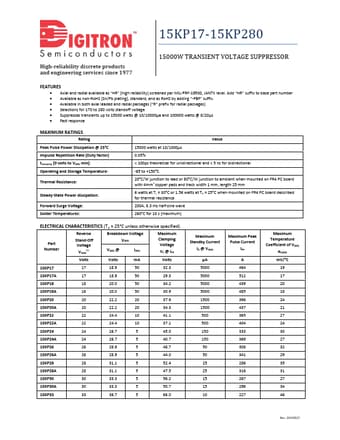

15KP120A Datasheet Preview — This datasheet PDF includes multiple part numbers: 15KP120A, 15KP17. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	15KP120A, 15KP17
Manufacturer	DigitrON Semiconductor ↗s
File Size	437.87 KB
Description	15000W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	15KP17-DigitronSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: 15KP120A, 15KP17. Please refer to the document for exact specifications by model.

15KP120A Product details

Features

Axial and radial available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.
Available in both axial leaded and radial packages (“R” prefix for radial packages).
Selections for 170 to 280 volts standoff voltage.
Suppresses transients up to 15000 watts @ 10/10000µa and 100000 watts @ 8/20µs.
Fast response.
