1N4571A - 6.4V TEMPERATURE COMPENSATED ZENER DIODE

Download the 1N4571A datasheet PDF. This datasheet also covers the 1N4565 variant, as both devices belong to the same 6.4v temperature compensated zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
  • Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4565-DigitronSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N4571A
Manufacturer Digitron Semiconductors
File Size 431.03 KB
Description 6.4V TEMPERATURE COMPENSATED ZENER DIODE
Datasheet download datasheet 1N4571A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4571A TEMPERATURE COMPENSATED ZENER REFERENCE DIODES Microsemi
1N4571A-1 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES Microsemi
1N4571A-1 Zener Reference Diode MA-COM
1N4571A-1 Zener Reference Diode Aeroflex
1N4571AUR Zener Reference Diode Aeroflex

Other Datasheets by Digitron Semiconductors

Part Number Description
1N4571AUR 6.4V TEMPERATURE COMPENSATED ZENER DIODE
1N4571 6.4V TEMPERATURE COMPENSATED ZENER DIODE
1N4571UR 6.4V TEMPERATURE COMPENSATED ZENER DIODE
1N4570 6.4V TEMPERATURE COMPENSATED ZENER DIODE
1N4570A 6.4V TEMPERATURE COMPENSATED ZENER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

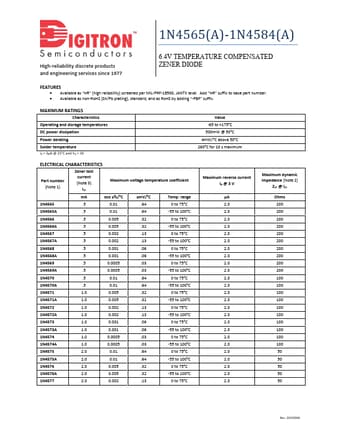

1N4565(A)-1N4584(A) High-reliability discrete products and engineering services since 1977 6.4V TEMPERATURE COMPENSATED ZENER DIODE FEATURES  Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.  Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix. MAXIMUM RATINGS Characteristics Operating and storage temperatures DC power dissipation Power derating Solder temperature IR = 2µA @ 25°C and VR = 3V Value -65 to +175°C 500mW @ 50°C 4mW/°C above 50°C 260°C for 10 s maximum ELECTRICAL CHARACTERISTICS Part number (Note 1) Zener test current (Note 3) IZT Maximum voltage temperature coefficient mA αvz ±%/°C ±mV/°C Temp. range 1N4565 .5 0.01 .64 0 to 75°C 1N4565A .5 0.01 .
