1N6036A - TRANSIENT VOLTAGE SUPPRESSOR DIODES

Download the 1N6036A datasheet PDF. This datasheet also covers the 1N6036 variant, as both devices belong to the same transient voltage suppressor diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
  • Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N6036-DigitronSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N6036A
Manufacturer Digitron Semiconductors
File Size 270.48 KB
Description TRANSIENT VOLTAGE SUPPRESSOR DIODES
Datasheet download datasheet 1N6036A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N6036A 1500 WATT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPESSOR Microsemi
1N6036A 1500 Watt Bidirectional Transient Voltage Suppressor Microchip
1N6036A METAL AXIAL TRANSIENT VOLTAGE SUPPRESSORS Littelfuse
1N6036 1500 WATT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPESSOR Microsemi
1N6036 1500 Watt Bidirectional Transient Voltage Suppressor Microchip

Other Datasheets by Digitron Semiconductors

Part Number Description
1N6036 TRANSIENT VOLTAGE SUPPRESSOR DIODES
1N6030 500mW ZENER DIODES
1N6031 500mW ZENER DIODES
1N6037 TRANSIENT VOLTAGE SUPPRESSOR DIODES
1N6037A TRANSIENT VOLTAGE SUPPRESSOR DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

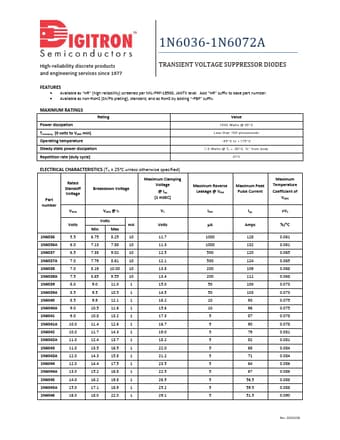

1N6036-1N6072A High-reliability discrete products and engineering services since 1977 TRANSIENT VOLTAGE SUPPRESSOR DIODES FEATURES  Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.  Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix. MAXIMUM RATINGS Rating Power dissipation Tclamping (0 volts to V(BR) min) Operating temperature Steady state power dissipation Repetition rate (duty cycle) Value 1500 Watts @ 25°C Less than 100 picoseconds -65°C to +175°C 1.0 Watts @ TL = 25°C, ⅜” from body .
