CCL0035 Datasheet - Digitron Semiconductors

CCL0035 CURRENT LIMITING DIODE

DIGITRON SEMICONDUCTORS CCL0035-CCL5750 CURRENT LIMITING DIODE Available Non-RoHS (standard) or RoHS compliant (add PBF suffix). Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number. MAXIMUM RATINGS Rating Peak operating voltage Power dissipation Operating junction and storage temperature range Symbol POV PD TJ, Tstg Value 100 600 -65 to +200 Unit V mW °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Part numbe.

CCL0035-DigitronSemiconductors.pdf

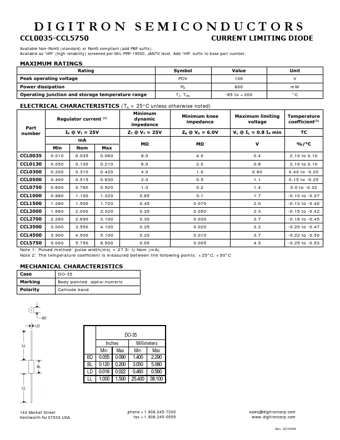

Preview of CCL0035 PDF

Datasheet Details

Part number:

CCL0035

Manufacturer:

DigitrON Semiconductor ↗s

File Size:

48.00 KB

Description:

Current limiting diode.
