SMCG54, SMCG5.0 Datasheet - Digitron Semiconductors

SMCG54 TRANSIENT ABSORPTION ZENER DIODES

DIGITRON SEMICONDUCTORS SMC SERIES TRANSIENT ABSORPTION ZENER DIODES 5.0 THROUGH 170.0 VOLTS, 1500 WATTS UNIDIRECTIONAL AND BIDIRECTIONAL CONSTRUCTION 1500 watts of peak power dissipation (10 x 1000µs) tclamping (0 volts to V(BR) min): less that 1 x 10-12 seconds Forward surge rating: 200 amps, 1/120 seconds @ 25°C(excluding bidirectional) Operating and storage temperature range: -65° to 150°C For bi-directional indicate a C or CA suffix after the part number (i.e. SMCJ5.0C or SMCJ5.0CA) Avai.

SMCG5.0-DigitronSemiconductors.pdf

This datasheet PDF includes multiple part numbers: SMCG54, SMCG5.0. Please refer to the document for exact specifications by model.

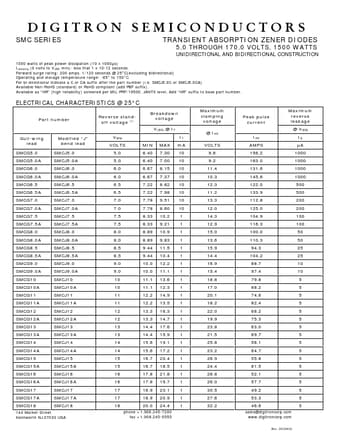

SMCG54 Datasheet Preview Page 2 SMCG54 Datasheet Preview Page 3

Datasheet Details

Part number:

SMCG54, SMCG5.0

Manufacturer:

DigitrON Semiconductor ↗s

File Size:

511.49 KB

Description:

Transient absorption zener diodes.

Note:

This datasheet PDF includes multiple part numbers: SMCG54, SMCG5.0.
Please refer to the document for exact specifications by model.
